Duplex latus ictu evaporator Wholesale

In domo / Productus / Evaporator / Duplex latus ictu evaporator

Quid possumus auxilium vobis?

Contact us mittens an inquisitionis vel per phone vel e-mail.

+ 86-13857552236
 Contact Us
  • Duplex latus ictu evaporator
  • Duplex latus ictu evaporator
  • Duplex latus ictu evaporator
  • Duplex latus ictu evaporator
  • Duplex latus ictu evaporator
  • Duplex latus ictu evaporator
  • Duplex latus ictu evaporator
  • Duplex latus ictu evaporator

Duplex latus ictu evaporator

Contact Us
PREV：No Previous productNEXT：Electric defrost evaporator
  • Descriptio
  • FEEDBACT

  • Xbl series duplex latus ictu evaporator sunt idoneam constant temperatus officinas et mandi possunt boletus crescente rooms. Quod productum habet rationalem structuram, humilis gelu formation, low strepitu, humilis airspeed, et summa altum calor commutatio efficientia.

    Haec series products habet sequentes characteres :

    ○ ad exteriores armamentis est de summus qualitas ferro laminis, superficies-iactaret ad corrosio resistentia, cum elegans apparentia;
    ○ usus est exteriori rotor motricium, in dual fluxus ensures gentle aere partus cum minima sonitus;
    ○ immaculatam ferro U-informibus tubuloso electrica caliginosus fortis in proprietatibus inserantur in pinnulas, cursus brevis defrosting et optimum Results.

    DL genus duplex latus ictu caeli frigidior

    Exemplar Ref.capacity (KW) Refrigerant area (㎡) Sheet spacing Fan Electric calefactio tube
    Qty Ferrum diameter (mm) Aeris volumen (M³ / h) Range (m) Power (W) Voltage (V) Coil (Kw) Voltage (V)
    XBSL-LV 11.5 55 4.5 3 350 III × MMD 2x4 3x180 380/220 3.0 220
    XBSL-LXXX 16.8 80 3 400 III × (IV) 2x4 3x230 380/220 4.0 220
    Xbsl-CV 22.0 105 3 400 III × (IV) 2x4 3x230 380/220 5.0 220
    Xbsl-CXXV 25.8 125 3 450 III × (IV) 2x4 3x280 380/220 7.2 220
    XBSL-CLX 35.6 160 4 450 IV × (IV) DCC 2x4 4x280 380/220 10.6 220
    XBSL-CLXXXV 38.5 185 5 450 V × (IV) DCC 2x4 5x280 380/220 13.6 220
    XBSL-CCX 44.0 210 4 500 IV × (VI) DC 2x4 4x460 380/220 15.8 220
    Xbsl-CCLX 52.5 260 5 500 V × (VI) DC 2x4 5x460 380/220 18.7 220

    Nota: De data in mensa fundatur in usum R22 refrigerare, ad T (Library) = 0 ℃, λt = X ℃.

    DD genus duplex latus ictu aer frigidior

    Exemplar Ref. Capacitas (KW) Refrigerant area (㎡) Sheet spacing Fan Electric calefactio tube
    Qty Ferrum diameter (mm) Aeris volumen (M³ / h) Range (m) Power (W) Voltage (V) Coil (KW) Voltage (V)
    XBSD-XL 8 40 6 3 350 III × MMD II × IV III × CLXXX 380/220 3.0 220
    LX-LX 12 60 3 400 III × (IV) II × IV III × CCXXX 380/220 4.0 220
    Xbsd-LXXX 15.9 80 3 400 III × (IV) II × IV III × CCXXX 380/220 5.5 220
    XBSD-C 20 100 3 450 III × (IV) DCC II × IV III × CCLXXX 380/220 7.6 220
    Xbsd-CXX 24 120 4 450 IV × (IV) DCC II × IV IV × CCLXXX 380/220 11.5 220
    XBSD-CXL 28 140 5 450 V × (IV) DCC II × IV V × CCLXXX 380/220 14.8 220
    XBSD-CLX 32.1 160 4 500 IV × (VI) DC II × IV IV × CDLX 380/220 17.2 220
    XBSD-CC 37.4 200 5 500 V × (VI) DC II × IV V × CDLX 380/220 21.2 220

    Note: De notitia in mensa fundatur in usum R22 refrigerandum, ad T (Library) = 0 ℃, λt = X ℃

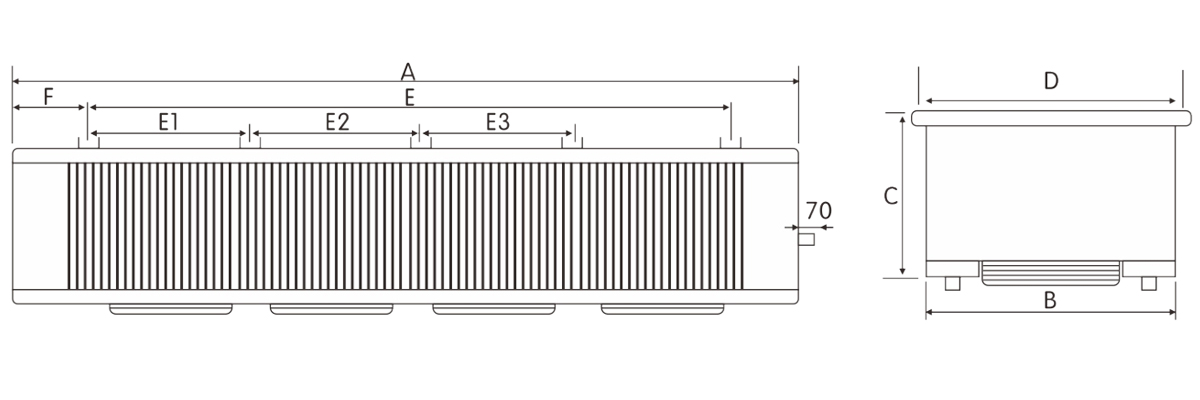

    Externi dimensiones et installation dimensiones duplici parte ictu caeli frigidior

    Exemplar A B C D E E1 E2 E3 F Inlet tubo (φmm) Back Trachea (φmm) Drainpipe
    XBSL-LV 1750 830 295 855 1530 / / / 90 16 25 G1
    XBSD-XL
    XBSL-LXXX 1780 880 385 905 1530 500 500 530 90 19 32
    LX-LX
    Xbsl-CV 2180 880 385 905 1930 633 633 664 95 19 32
    Xbsd-LXXX
    Xbsl-CXXV 2200 1015 405 1040 1950 640 640 640 95 19 35
    XBSD-C
    XBSL-CLX 2680 1015 405 1040 2430 600 600 600 95 19 35
    Xbsd-CXX
    XBSL-CLXXXV 2980 1020 385 1040 2730 540 540 540 95 19 35
    XBSD-CXL
    XBSL-CCX 2980 1160 405 1200 2730 675 675 675 95 25 42
    XBSD-CLX
    Xbsl-CCLX 3480 1330 585 1370 3230 640 640 640 95 25 42
    Xbsd, 200

Related Products

Mos forms

Si supradictis placet implere forma.

Drawing/photo of the processed product
Send
  • Cibi processus

    Food refrigeration est speciale technology utitur humilis-temperatus technology ad minus temperatus cibum et ponere ad humilis temperatus ne cibus vastitas et protongius PLUTEUM vita cibis. Low-temperature preservation can be used for the storage of fresh food materials, et is also widely used in food processing, storage of semi-finished products, etc. With the gradual improvement of living standards, people are paying more and more attention to the reasonable intake of nutrients, and the requirements for food preservation are also gradually increasing.

  • Frigus catena Logistics

    Frigus catena logistics plerumque refert ad systematicam project qui custodit refrigerated et gelida cibis in certa humilis-temperatus elit per productio, repono, translationem, distribution et cibum products ut cibum qualitas et reductionem cibo. Hoc erat statutum cum progressionem scientiae et technology et progressionem in refrigerationem technology. Est humilis-temperatus logistics et repono processus secundum glacians technology et usura refrigeration technology ut modo. Cum celeri progressionem de Sinis scriptor agriculturae productum frigus torquem logistics industria, in regionem suam formavit et implemented scientific et effective tortor policies.

  • Quum interfectionem glacians

    Escam et cibum products sunt dives in dapibus nutrimentum et excelsum aqua operatio. Microorganisms sunt valde verisimile multiplicare et crescere in repono, processus, translationem et venditionesque, causando eos spolia. Hoc non solum ducit ad oeconomica damna et environmental pollutio sed etiam gravissime periculum populus salutem et vitam. Et applicationem provectus et industria, salvis refrigeration apparatu et technology, inter acidum missionem, refrigerationem, velox glacians et alia processibus in caede industria, ensures a fonte.

  • Pharmaceutical oeconomiae

    In industriae productio, refrigeration apparatu potest verius animadverto quidam refrigerationem processibus vel praestare aer condiciones et late in eget, pharmaceutical, electronic et aliis agris. In pharmaceutical agro, ex maxime industria, in environmental temperatus, humiditas et munditia requisitis durante productio et repono of pharmaceutical products sunt valde altum, quod etiam superiore related in Refrigeration apparatu.

  • Supermarket retail

    De momenti supermarkets ad homines scriptor vitae est per se nota. In finem frigus torquem logistics agriculturae et sideline products, supermarkets habere princeps requisitis ad uber qualis in distribution et retail links. Et frigore et refrigeration apparatu in supermarkets ludit a magnus munus in cibo conservatio et ludit an maximus munus in testimonii populus scriptor crescente necessitates ad meliorem vitam.

  • Frigida industriae aquae

    Industrial chillers late in plastics, electroplating, electronics, chemicals, pharmaceuticals, printing, cibum processus, et alia industriae refrigeration processuum, quod eget frigida aqua, aut in villas, officinas, et humanae, officiis, scholarum, officinas, et alias operatio spatia ad providere comfortable aer condicionibus. Sicut unus de solutions pro Ammonia ut fluorine conversionem, humilis-temperatus chillers sunt commendatur solutio.

  • Central Culchen

    Centralis culina est relative lata conceptum. Ex necessitate cibum salus nutritionem polliceri temperatus elit valde. Plerumque, frigus repono in refrigerated repono, frigus repono ad gelida repono, etc non requiritur; Secundum ad de more operatio, potest dividi in centralis distribution centrum frigus repono, operatio locus frigus repono, translationem cubiculum frigus repono, et quisquiliarum frigus, etc.; Et secundum operationem ad Central Book frigus repono, velox frigus repono est etiam requiritur ad velox glacians processus of quidam coctum cibum products. In eodem tempore, ad processui locus, refrigeration apparatu etiam opus est control regional temperatus ad curare cibum salutem.

  • Dining deversorium

    Stella-rated hotels et restaurants sunt instructa cum dedicated frigus repono ad repono cibum et cibum ingredients, etc hotel et popina frigus repono est maxime disposito ut dual-temperatus adipiscing repono est maxime, ut dual-temperatus) ad optimal repono est maxime ad repono fructibus et herbas gelida repono est maxime ad copia seafood, gelida cibum, etc.

De
Zhejiang Xinba Refrigeration Equipment Co., Ltd.
Zhejiang Xinba Refrigeration Equipment Co., Ltd. is located in the beautiful city of Zhejiang Province, close to the Yongjin Expressway, Shangsan Expressway, and Shaotai Expressway under construction, with a developed economy and convenient transportation. Sicut China Duplex latus ictu evaporator manufacturers and wholesale Duplex latus ictu evaporator factory, In comitatu specialitas in productio REFRIGERATION Equipment et Accessories ut Aeris Coolers, Condensers, REFRIGERATOR unitates, etc. cum Rich Professional et Mutare in Technology, PROPTILIUM RECORDIGATIONALIS EXERCITAS et provisum est, et in REPRIGENTIS REPRIGENTALIS EXERCITAS et proverbium, quod in agros Refrigeration systems qualis et ad vescendum, et in agros, ut quaerit in cibus, chemicals, hotels, pharmaceuticals, electronics: Vegetables, flores, etc, bene accepit pro suo firmum qualis et opportune partus, et sincere providebit vos cum summus qualis officia cum professionalis spiritu, ut non curarum. Nos suscipere negotium philosophia de "viridi, efficient, honestam et pragmaticam" et assequendum harmonia inter sociali environment et utilitates semper fuisse noster assidendo studium. Hoc semper fuit nostri unshirkable responsibility esse responsible pro Societate, customers et comitatu employees. Vultus in posterum, ut permanere promovere innovation et progressionem in refrigeration apparatu et satiat customers cum altus-species officia.
Nuntium
Evaporator Industry Knowledge

Duplex latus ictu evaporator, innovative electio Zhejiang Xinba Refrigeration Equipment Co., Ltd

Sicut foro demanda pro industria, salvis, summus efficientiam, et humilis strepitu apparatu continues ad augendam, duplex latus ictu evaporator, ut in omni gradibus et humilis industria, est magis aestus exaltatio et humilis industria consumptio. Zhejiang Xinba Refrigeration apparatu Co., Ltd., cum eius altum technica background et dives consilio experientia, habet launched in altum efficientiam duplici latus ictu evaporator, quod late in constant temperatus in cella et alte in fungus gazofilacia, et alias fungus gazofilacia, quod est in fungus gazofilacia, quod alias fungus gazofilacia, et alias fungus gazofs et alias fungus gazofs et alias in fungus gazophyos, quod aliter in fungus gazophyos, et alias fungus gazofilacia, quod in alte fungus gazofs et alias in gazofilacitos et alias fungus groups et alias fungus gazofilacia, quod in alte fungus groups et alias in fungus gazofs et alias agri.

Duplex latus ictu evaporator Habet seriem significant features, quod facit eam irreplaceable in multis application missionibus:

Duplex latus ictu evaporator utitur immaculatam ferro u, tubo electrica calentium, et hae calentium sunt, callide embedded in pinnulas ad providere magis efficiens æstus. Et fortis inquisitionem perficientur facit calor commutationem citius, reduces tempus frosting, ensures ut apparatu potest cito aliquam operantes, et significantly amplio opus efficientiam.

Usus exterioris rotor motricium et duplex fluxus consilio ad consequi mitis airflow traditio valde reducit vocem per operationem. Utrum in quietam refrigerationem elit vel in locis ut cibo et pharmaceutical processus plantis sonitus-sensitivo requisitis, hoc duplex latus ictu evaporator ponere humilis-sonitus operatio et creare meliorem operationem environment.

Crusta in duplici parte ictu evaporator factum est summus qualis ferro laminis et specialiter iactaret, quae non solum corrosio repugnans sed etiam auget altiore diuturnitatem apparatu. Simpliciter et modern speciem consilio non solum occurrit usum requisita variis operantes environments sed etiam resistit in test in externa environment, extendens ministerium vitae apparatu.

Cum suis unique structuram et efficiens calor commutationem facultatem, in duplici parte ictu evaporator potest completum efficiens refrigerationem opus ad minus industria consummatio. Cum traditional evaporators, humilis airflow velocitatem humilitatem industria consummatio consilium auxilium reducere operating costs et idonei diversis locis stricte requisita navitas salutis.

Maximum efficientiam, industria salvis et humilis sonitus characteres duplex latus ictu evaporator facere idealis refrigeration apparatu ad multos industries, praesertim ambitus cum stricte requisitis in temperatus et humiditas ut constans temperatus officinas et potestas fungus, ut continuam temperatus in caliditas et potestatem talem ut continuam temperatus officinas et potestatem talem ut constet ad temperatus et cani fungus talisque elit. Eius agentibus calor commutationem et defrosting capabilities potest efficaciter potestate humiditatem et ensure uber qualis dum ensuring firmum temperatus.

In addition, duplex latus ictu evaporator late in cibum processus, eget, hotel, pharmaceutical, electronics et alia industries. Utrum sit magna scale refrigerationem, aer condiciones, aut temperatus imperium administratione, duplex latus ictu evaporator potest providere firmum refrigerationem effectus et est momenti apparatu in frigore torquem et refrigerated apparatu in frigore torquem et refrigerats in horreis.

Zhejiang Xinba Refrigeration Equipment Co., Ltd: Ducens Refrigeration Technology Suggeration
Zhejiang Xinba Refrigeration apparatu Co., Ltd est Enterprise focusing in investigationis et progressionem, productio et venditionesque Refrigeration apparatu, dedicated ut providing altum, eget, de Hotel, Refrigeral includit Aeris, et cetera Solvitur, Refrigerations includit Aeris, et cetera, Refrigerations, et alias, Condensers, REFRIGERATION includit Aeris et cetera in Aeris, REFRIGERATIONS et aliarum apparatibus. Cum eius profunda peritia et dives consilio experientia, Zhejiang Xinba Refrigeration apparatu Co., Ltd semper committitur ad technicae innovation et stricto productum qualis et efficiens REFRIGERATOR products.

In comitatu est exaggeratus plures annos experientia in agro REFRIGERATIO apparatu. Strictae qualitas imperium system et superbum technica firmamentum ensure efficientiam et stabilitatem cuiusque uber. Zhejiang Xinba Refrigeration apparatu Co., Ltd scriptor products sunt late in variis industrias et vicit unanimi laude ex customers. In comitatu est semper elit-orientatur, continuously improving uber perficientur et continuously promovens progressionem in refrigerationem technology.
