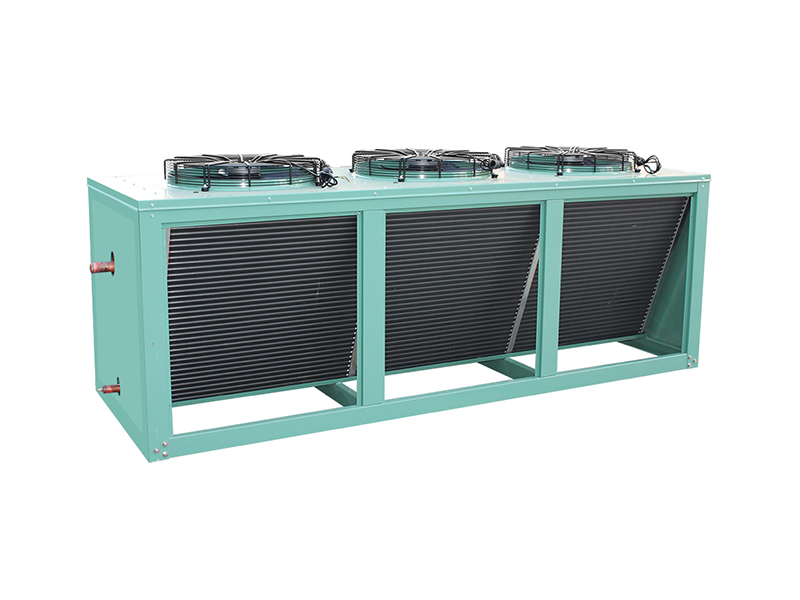

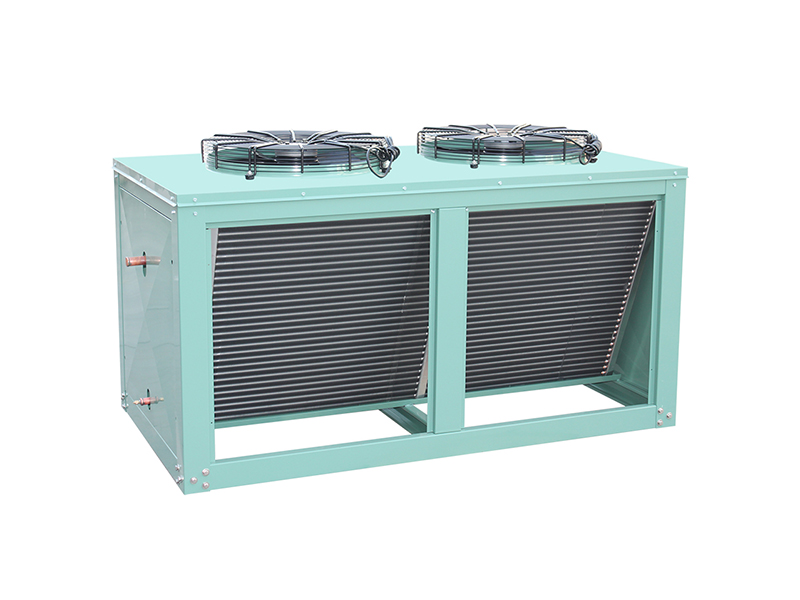

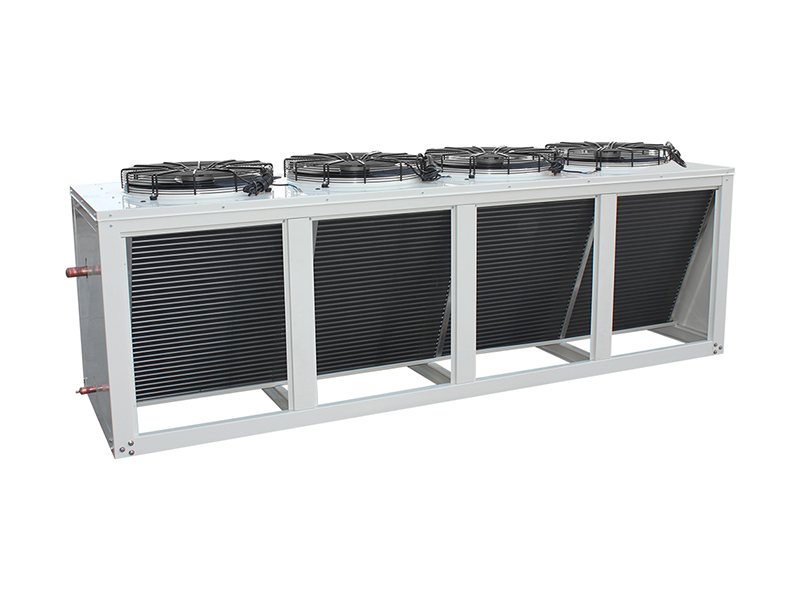

FNV Aeris-cooled Condenser

Contact Us
PREV：FNU Aeris-refrigeratum CondenserNEXT：FNH Air-cooled Condenser
  • Descriptio
  • FEEDBACT

  • Fnv Aeris-cooled condenser est specie disposito ut calor dissipationem fabrica ad refrigerationem apparatu per refrigerantes sicut freon. Est utilitas aer convection ad dissipare calor dimisit a refrigerare durante condensatione processus, cursus normalis operationem in refrigeraturam ratio. Et Condenser est princeps airtightness, ensuring nullum lacus sub magno pressura. Instructum externum rotor fan, quae operatur cum humili noise.

    Main Technical parametri FNV Aeris-cooled Condenser

    Exemplar Calor exchang facultatem (KW) Refrigerant area (㎡) Fan
    Qty Ferrum diameter (mm) Aeris volumen (M³ / h) Power (W) Voltage (V)
    FNV, 24.6 / LXXX 24.6 80 2 450 2x4700 2x280 380
    FNV, 27.5 / XC 27.5 90 2 450 2x4700 2x280 380
    FNV, 31.0 / C 31 100 2 500 2x6600 2x460 380
    FNV, 34.4 / CXX 34.4 120 2 550 2x8660 2x650 380
    FNV, 44.2 / CLV 44.2 155 2 550 2x8660 2x650 380
    FNV, 55.8 / CLXXXV 55.8 185 2 600 2x10600 2x860 380
    FNV, 61.6 / CC 61.6 200 2 600 2x10600 2x860 380
    FNV, 67.4 / CCXX 67.4 220 3 550 3x8660 3x650 380
    FNV, 73.9 / CCXL 73.9 240 3 550 3x8660 3x650 380
    FNV, 81.5 / CCLXV 81.5 265 3 550 3x8660 3x650 380
    FNV, 92.4 / CCC 92.4 300 3 600 3x10600 3x860 380
    FNV-108.7 / CCCL 108.7 350 4 600 3x10600 4x860 380
    FNV, 123.7 / CD 123.7 400 4 600 4x10600 4x860 380

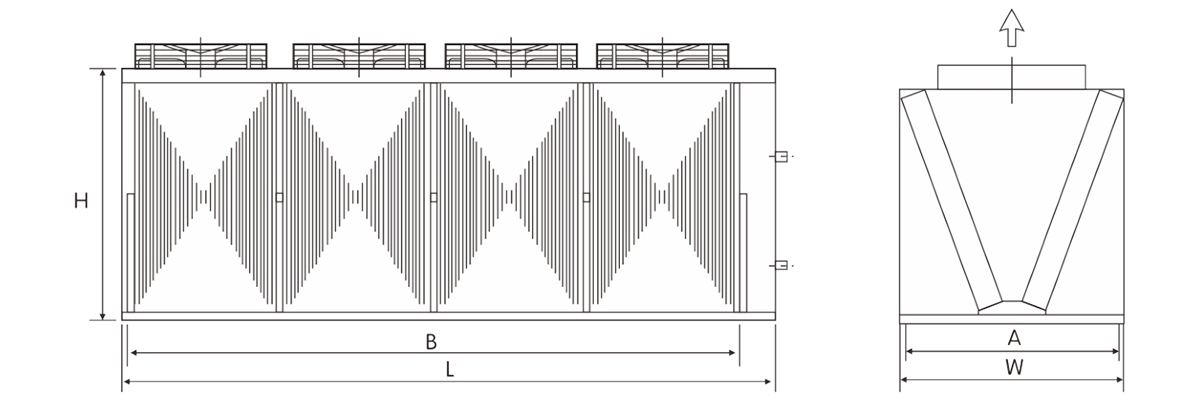

    Specie et institutionem dimensiones FNV aeris-cooled condenser

    Exemplar L H W A B Intege Pipe (φmm) Outlet Tube (φmm)
    FNV, 24.6 / LXXX 1180 610 840 760 1080 φ25 φ19
    FNV, 27.5 / XC 1300 610 840 760 1180 φ25 φ19
    FNV, 31.0 / C 1420 615 840 760 1230 φ25 φ19
    FNV, 34.4 / CXX 1470 745 860 780 1300 φ28 φ19
    FNV, 44.2 / CLV 1660 850 920 800 1500 φ32 φ22
    FNV, 55.8 / CLXXXV 1900 850 920 800 1730 φ32 φ25
    FNV, 61.6 / CC 1900 940 955 820 1730 φ32 φ25
    FNV, 67.4 / CCXX 2240 850 920 800 1900 φ32 φ25
    FNV, 73.9 / CCXL 2240 940 955 820 2030 φ32 φ22
    FNV, 81.5 / CCLXV 2450 940 955 820 2280 φ32 φ28
    FNV, 92.4 / CCC 2740 940 955 820 2550 φ35 φ28
    FNV-108.7 / CCCL 3080 940 955 820 2670 φ42 φ32
    FNV, 123.7 / CD 2880 940 1030 890 2660 φ42 φ32
